Tubes

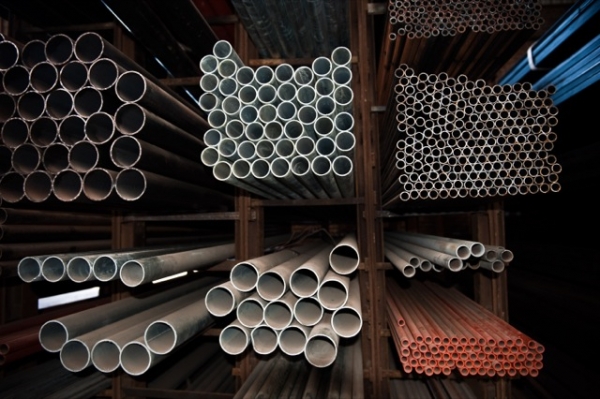

Tubes ronds
| Diamètre | Epaisseur (mm) | ||||
| (") | (mm) | Iso II Const. | Galva | Prépeint rouge | Métrique |
| 12.0 | 1.5 | ||||
| 14.0 | 2.0 | ||||
| 16.0 | 1.5 | ||||
| 3/8" | 17.2 | 2.0 | |||
| 18.0 | 1.5 | ||||
| 20.0 | 2.0 | ||||
| 1/2" | 21.3 | 2.0 | 2.7 | 2.7 | |
| 25.0 | 2.0 | ||||
| 3/4" | 26.9 | 2.4 | 2.7 | 2.7 | |
| 30.0 | 2.0 | ||||
| 1" | 33.7 | 2.7 | 3.3 | 3.3 | |
| 35.0 | 2.0 | ||||
| 38.0 | 2.0 | ||||
| 40.0* | 2.0 | ||||
| 1"1/4 | 42.4 | 2.7 | 3.3 | 3.3 | |
| 1"1/2 | 48.3 | 2.9 | 3.3 | 3.3 | |
| 2" | 60.3 | 2.9 | 3.7 | 3.7 | |
| 2"1/2 | 76.1 | 2.9 | 3.7 | 3.7 | |
| 3" | 88.9 | 3.2 | 4.1 | 4.1 | |
| 101.6 | 3.7 | ||||
| 108.0 | 3.7 | ||||
| 4" | 114.3 | 3.7 | |||
| 5" | 139.7 | 4.0 | |||
| 159.0 | 4.0 | ||||
| 6" | 168.3 | 4.0 | |||
| 193.7 | 4.0 | ||||
| 8" | 219.1 | 4.0 | |||
Coude à souder disponible pour les tubes ISO II Construction.

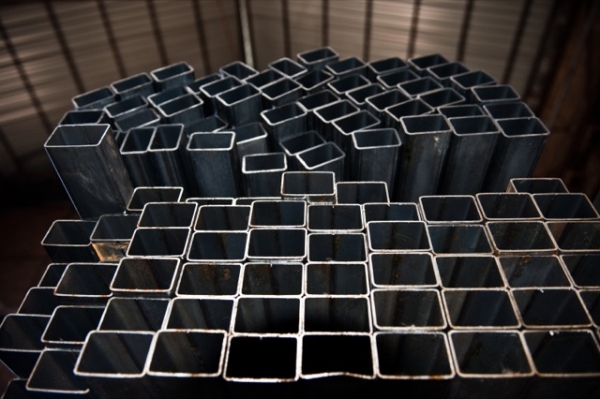

Tubes carrés
|
Dimensions (mm) |
Poids (Kg/m) |
| H x L x ép | |
| 15x15x2 | 0.81 |
| 20x20x2 | 1.13 |
| 25x25x2 | 1.45 |
| 25x25x3 | 1.99 |
| 30x30x2 | 1.77 |
| 30x30x3 | 2.47 |
| 35x35x2 | 2.09 |
| 40x40x2 | 2.41 |
| 40x40x3 | 3.43 |
| 40x40x4 | 4.28 |
| 45x45x2 | 2.73 |
| 50x50x2 | 3.05 |
| 50x50x3 | 4.39 |
| 60x60x2 | 3.69 |
| 60x60x3 | 5.35 |
| 70x70x3 | 6.31 |
| 70x70x4 | 8.12 |
| 80x80x3 | 7.27 |
| 80x80x4 | 9.40 |
| 90x90x3 | 8.23 |
| 90x90x4 | 10.68 |
| 100x100x4 | 11.96 |
| 120x120x4 | 14.52 |
| 150x150x4 | 18.36 |
| 150x150x5 | 22.68 |
| 200x200x5 | 30.00 |

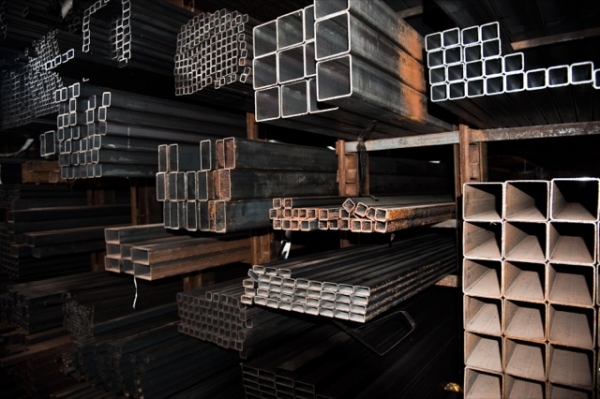

Tubes rectangulaires
|
Dimensions (mm) |
Poids (Kg/m) |
| H x L x ép. | |
| 30x20x2 | 1.45 |
| 40x20x2 | 1.77 |
| 40x30x2 | 2.09 |
| 40x30x3 | 2.94 |
| 50x20x2 | 2.09 |
| 50x30x2 | 2.41 |
| 50x30x3 | 3.42 |
| 50x40x2 | 2.73 |
| 60x20x2 | 2.41 |
| 60x30x2 | 2.73 |
| 60x30x3 | 3.90 |
| 60x40x2 | 3.05 |
| 60x40x3 | 4.38 |
| 80x40x2 | 3.69 |
| 80x40x3 | 5.34 |
| 80x40x4 | 6.83 |
| 100x40x3 | 6.30 |
| 100x50x3 | 6.78 |
| 120x60x3 | 8.22 |
| 180x80x5 | 19.48 |
