Acier

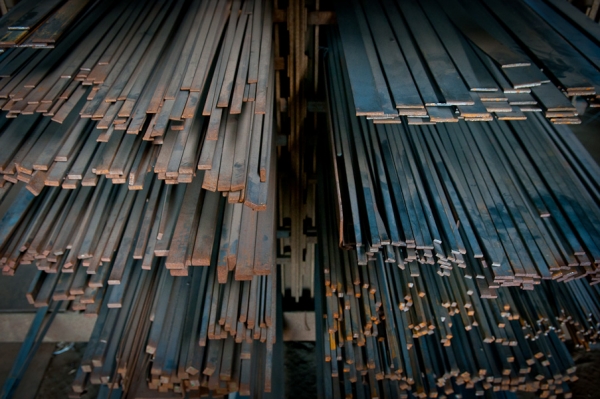

Plats
|
Poids (Kg/m) |
3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
| 10 | 0.40 | ||||||||
| 15 | 0.60 | ||||||||
| 20 | 0.48 | 0.80 | 1.28 | 1.60 | 2.40 | ||||
| 25 | 0.60 | 1.00 | 1.60 | 2.00 | 3.00 | ||||
| 30 | 0.72 | 1.20 | 1.92 | 2.40 | 3.60 | 4.80 | |||
| 35 | 1.40 | ||||||||
| 40 | 0.96 | 1.28 | 1.60 | 2.56 | 3.20 | ||||
| 50 | 1.20 | 2.00 | 3.20 | 4.00 | 6.00 | 8.00 | |||
| 60 | 1.40 | 2.40 | 3.84 | 4.80 | 7.20 | ||||
| 70 | |||||||||
| 80 | 3.20 | 5.12 | 6.40 | 9.60 | 12.80 | ||||
| 100 | 4.00 | 6.40 | 8.00 | 12.00 | 16.00 | ||||
| 120 | 4.80 | 7.68 | 9.60 | 14.40 | 19.20 | ||||
| 150 | 6.00 | 9.60 | 12.00 | 18.00 | 24.00 | ||||
| 180 | 7.20 | 11.52 | 14.40 | ||||||
| 200 | 8.00 | 12.80 | 16.00 | 24.00 | 32.00 | ||||
| 300 | 24.00 | ||||||||
| 400 | 32.00 |
autres dimensions disponibles sur commande en longueur de 6M uniquement*

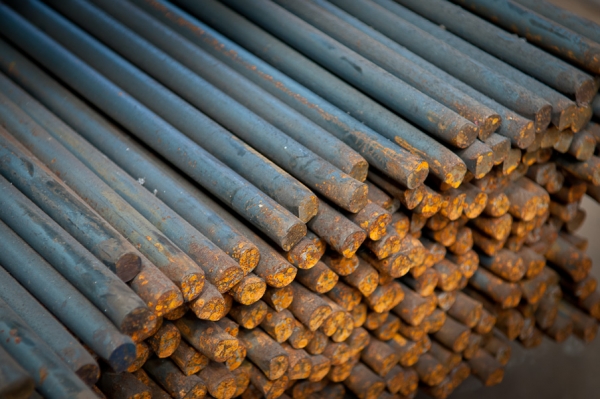

Ronds pleins
| Ø en mm |
Poids (Kg/m) |
| 6* | 0.23 |
| 8* | 0.40 |
| 10* | 0.63 |
| 12* | 0.90 |
| 14* | 1.23 |
| 15 | 1.41 |
| 16* | 1.60 |
| 18* | 2.04 |
| 20* | 2.51 |
| 22 | 3.04 |
| 24 | 3.62 |
| 25* | 3.93 |
| 28 | 4.93 |
| 30* | 5.65 |
| 32 | 6.43 |
| 35 | 7.70 |
| 40* | 10.05 |
| 45 | 12.72 |
| 50* | 15.71 |
| 55 | 19.01 |
| 60 | 22.62 |
| 70 | 30.79 |
| 75 | 35.34 |
| 80 | 40.21 |
| 90 | 50.89 |
| 100 | 62.83 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* = Dimensions de stock
Autres diamètres sur commande en longueur de 6M uniquement.
• Egalement disponible en étiré en qualité St 52-3.

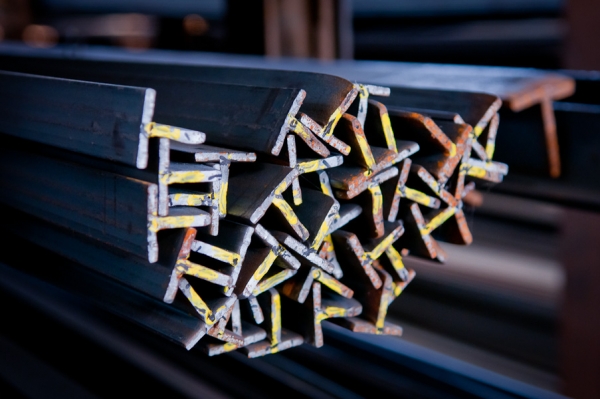

Fer Tés
|
Dimensions (mm) |
Poids (Kg/m) |
| 20x20x3 | 0.90 |
| 25x25x3,5 | 1.32 |
| 30x30x4 | 1.80 |
| 40x40x5 | 3.03 |
| 50x50x6 | 4.53 |
| 60x60x7 | 6.35 |
| 70x70x8 | 8.48 |
| 80x80x9 | 10.90 |
| 100x100x11 | 16.72 |

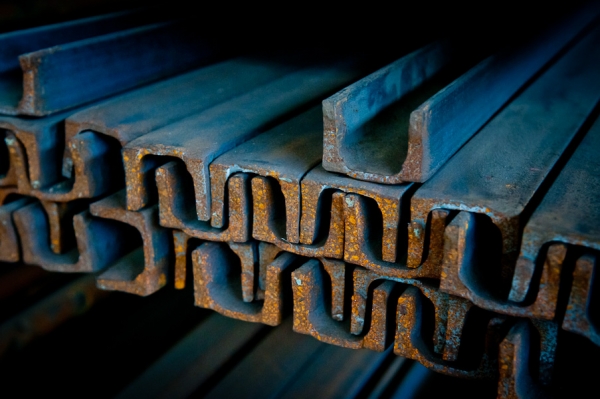

U laminés à chaud
|
Dimensions (mm) |
Poids (Kg/m) |
|
| a x b x e | c | |
| 30x15x4 | 4.5 | 1.77 |
| 40x20x5 | 5.5 | 2.93 |
| 40x35x5 | 7.0 | 4.97 |
| 50x25x5 | 6.0 | 3.94 |
| 50x38x5 | 7.0 | 5.70 |
| 60x30x6 | 6.0 | 5.17 |
| 60x40x6 | 7.0 | 6.64 |
| 65x42x5,5 | 7.5 | 7.23 |

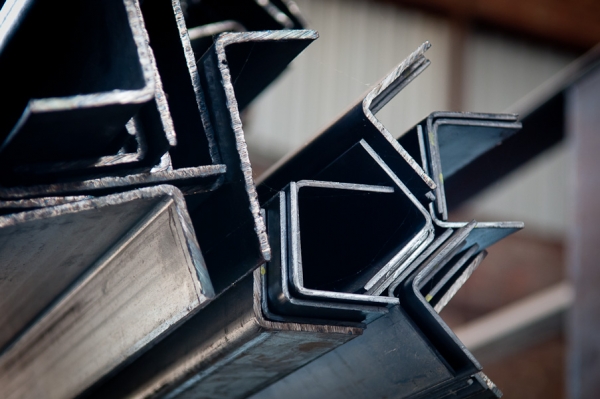

U laminés à froid
|
Dimensions (mm) |
Poids (Kg/m) |
| a x b x e | |
| 15x15x2 | 0.63 |
| 20x20x2 | 0.87 |
| 22x22x2 | 0.97 |
| 25x25x2 | 1.11 |
| 30x30x2 | 1.35 |
| 30x30x3 | 1.96 |
| 35x35x2 | 1.53 |
| 40x40x2 | 1.83 |
| 40x40x3 | 2.68 |
| 50x50x3 | 3.40 |
| 60x40x3 | 3.16 |
| 70x40x3 | 3.40 |
| 80x40x3 | 3.64 |
| 100x50x3 | 4.60 |
| 100x50x4 | 6.04 |
| 120x60x4 | 7.32 |
| 140x60x4 | 7.96 |
| 160x60x4 | 8.54 |
| 180x60x4 | 9.24 |
| 200x60x4 | 9.88 |
| 200x80x5 | 13.84 |

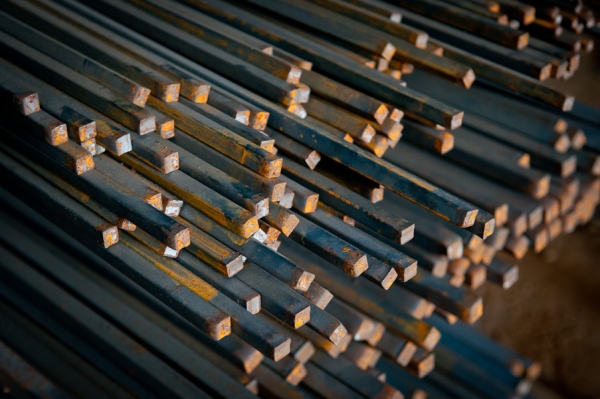

Carrés Pleins
|
Hauteurs (mm) |
Poids (Kg/m) |
| 8* | 0.51 |
| 10* | 0.80 |
| 12* | 1.15 |
| 14 | 1.57 |
| 15* | 1.80 |
| 16 | 2.05 |
| 18 | 2.59 |
| 20* | 3.20 |
| 22 | 3.87 |
| 25* | 5.00 |
| 30* | 7.20 |
| 35 | 9.80 |
| 40* | 12.80 |
| 50 | 20.00 |
| 60 | 28.80 |
| 70 | 39.20 |
| 80 | 51.20 |
| 90 | 64.80 |
| 100 | 80.00 |
* = Dimension de stock
Autres hauteurs sur commande en longueur de 6M uniquement.

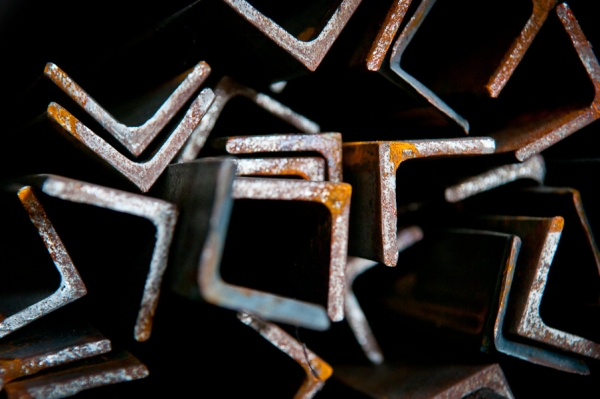

Cornières laminées à chaud
Cornières laminées à chaud
| Cornières égales | |
|
Dimensions (mm) |
Poids (Kg/m) |
| 15x15x3 | 0.71 |
| 20x20x3 | 0.90 |
| 25x25x3 | 1.14 |
| 30x30x3* | 1.39 |
| 35x35x4 | 2.13 |
| 40x40x4* | 2.46 |
| 45x45x5 | 3.44 |
| 50x50x5* | 3.84 |
| 60x60x6* | 5.53 |
| 70x70x7 | 7.52 |
| 80x80x8* | 9.81 |
| 90x90x9* | 12.42 |
| 100x100x10* | 15.32 |
| 120x120x10* | 18.55 |
| 150x150x10* | 23.42 |
* = Egalement disponible en galvanisé
| Cornières inégales | |
|
Dimensions (mm) |
Poids (Kg/m) |
| 30x20x3 | 1.15 |
| 40x20x3 | 1.4 |
| 50x30x5 | 3.03 |
| 60x30x5 | 3.43 |
| 80x40x6 | 5.52 |
| 100x50x6 | 6.99 |
| 150x100x10 | 19.4 |
| 200x100x10* | 23.42 |
Cornières laminées à froid
|
Dimensions (mm) |
Poids (Kg/m) |
| Cornières égales | |
| 20x20x2 | 0.60 |
| 25x25x2 | 0.76 |
| 30x30x2 | 0.92 |
| 40x40x2 | 1.24 |
| 50x50x3 | 2.30 |
| 60x60x3 | 2.76 |
| Cornières inégales | |
| 50x30x3 | 1.82 |
| 60x40x3 | 2.30 |
| 80x40x3 | 2.78 |
| 100x50x3 | 3.50 |
